Infotainment System Controller
Driving the Future of Intelligent Mobility
Ecotron’s next-generation infotainment system controller is purpose-built to meet the demands of vehicle electrification, intelligence, and connectivity. Powered by the high-performance NXP i.MX8QM platform, the infotainment system integrates advanced power management, high-speed LPDDR4 memory, and reliable eMMC storage—delivering exceptional computing performance in a compact design. Its multi-system-on-one-chip architecture enables seamless coordination across subsystems while offering dynamic compute resource allocation tailored to diverse driving scenarios.
Designed for immersive user experiences, the infotainment system controller supports full 3D graphics processing and powers a wide array of display interfaces—including central infotainment screens, digital instrument clusters, head-up displays (HUD), passenger entertainment systems, and rear-seat monitors. With smartphone screen mirroring capabilities, drivers and passengers can easily project mobile content to the cockpit, enabling intuitive, connected, and interactive in-vehicle experiences.
Hardware Parameters |
||
| Core Computing | ARM Processor | NXP i.MX8QM6AVUFFAB |
| LPDDR4 | 2 × 1GB LPDDR4 | |
| EMMC | 8GB eMMC | |
| MCU | Microcontroller (MCU) | Infinion TC297 |
| Video Interface | Video Input | 8 Channels |
| Video Output | 4-channel FPD-Link III output (4 × HSD4) | |
| Audio Interface | MIC Input | Microphone signal acquisition |
| Line Out | 2-channel analog audio output | |
| Communication I/O | USB | 1 Input |
| CAN | 3 × CAN FD | |
| SIM | 1 Slot | |
| SD | 1 Slot | |
| IO Detection | 3-channel IO input detection | |
| Wireless | Bluetooth | Bluetooth V4.2/5.3 + LE + BR/EDR |
| Wi-Fi | Supports 2.4G/5G dual-band dual-channel | |
| GPS | 1 Antenna | |
| 4G Signal Detection | 1 Antenna | |
| Services | Smartphone screen projection, supports Apple Carplay and Android Auto | |
| Software | OS | Linux or other |

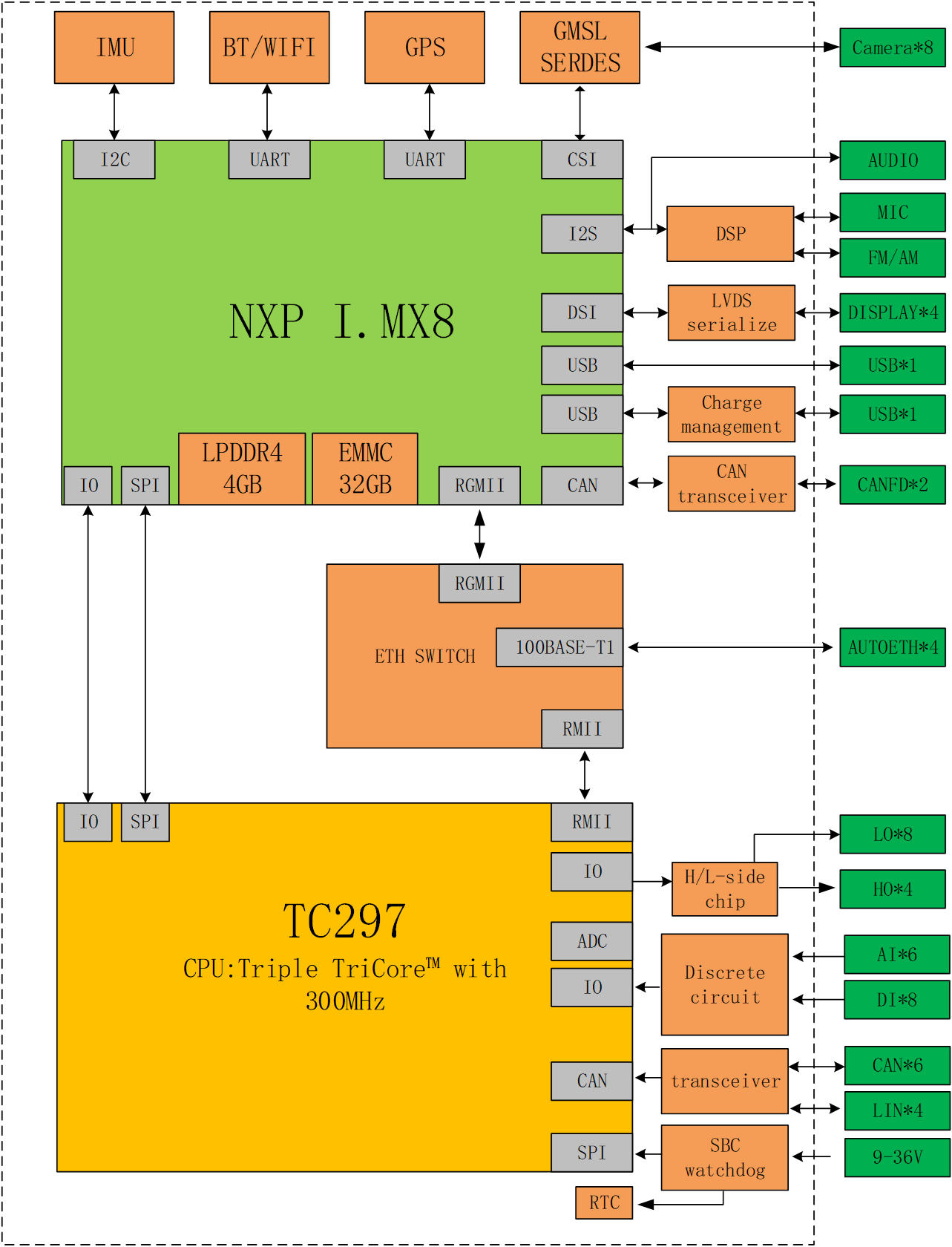

Hardware Structure

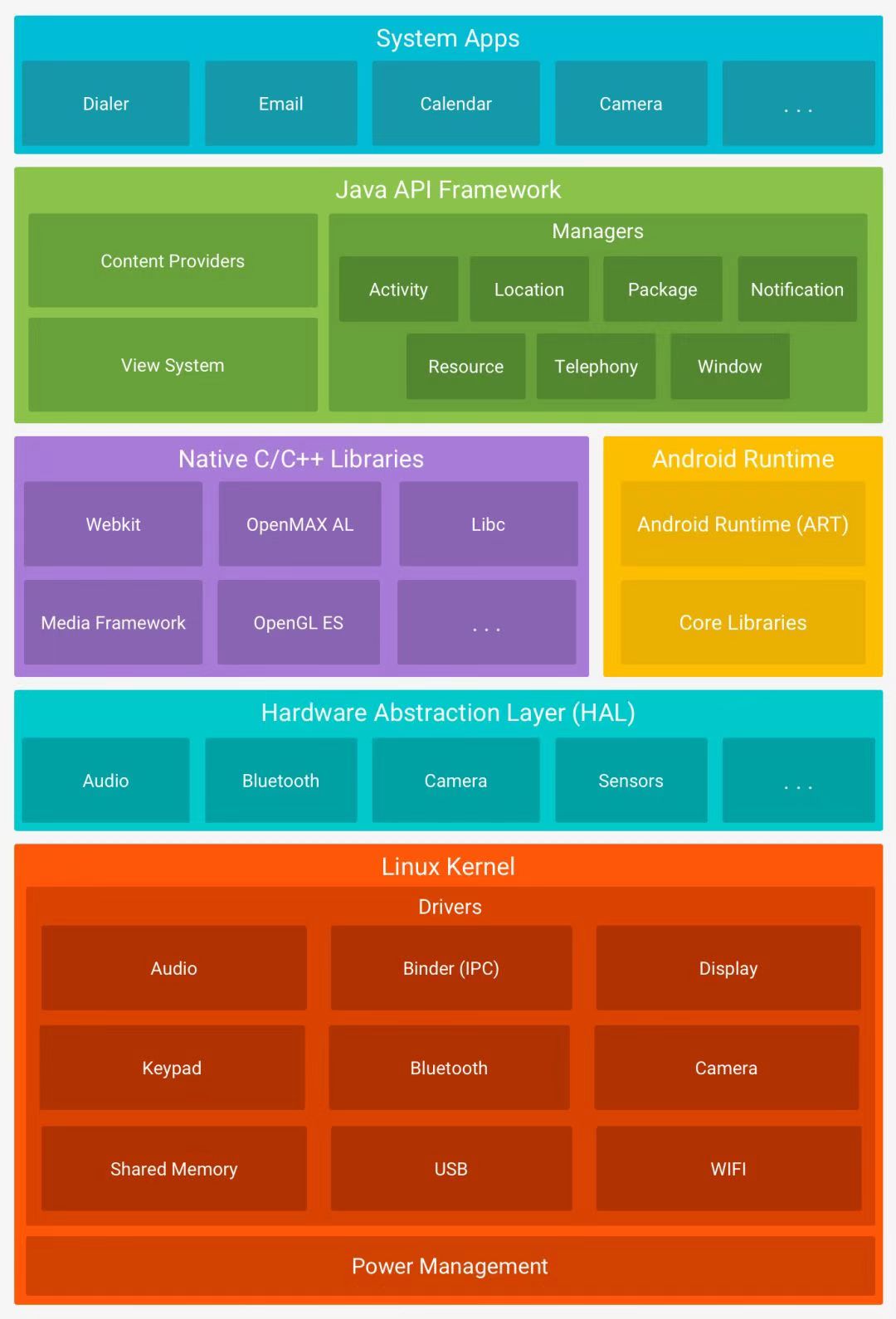

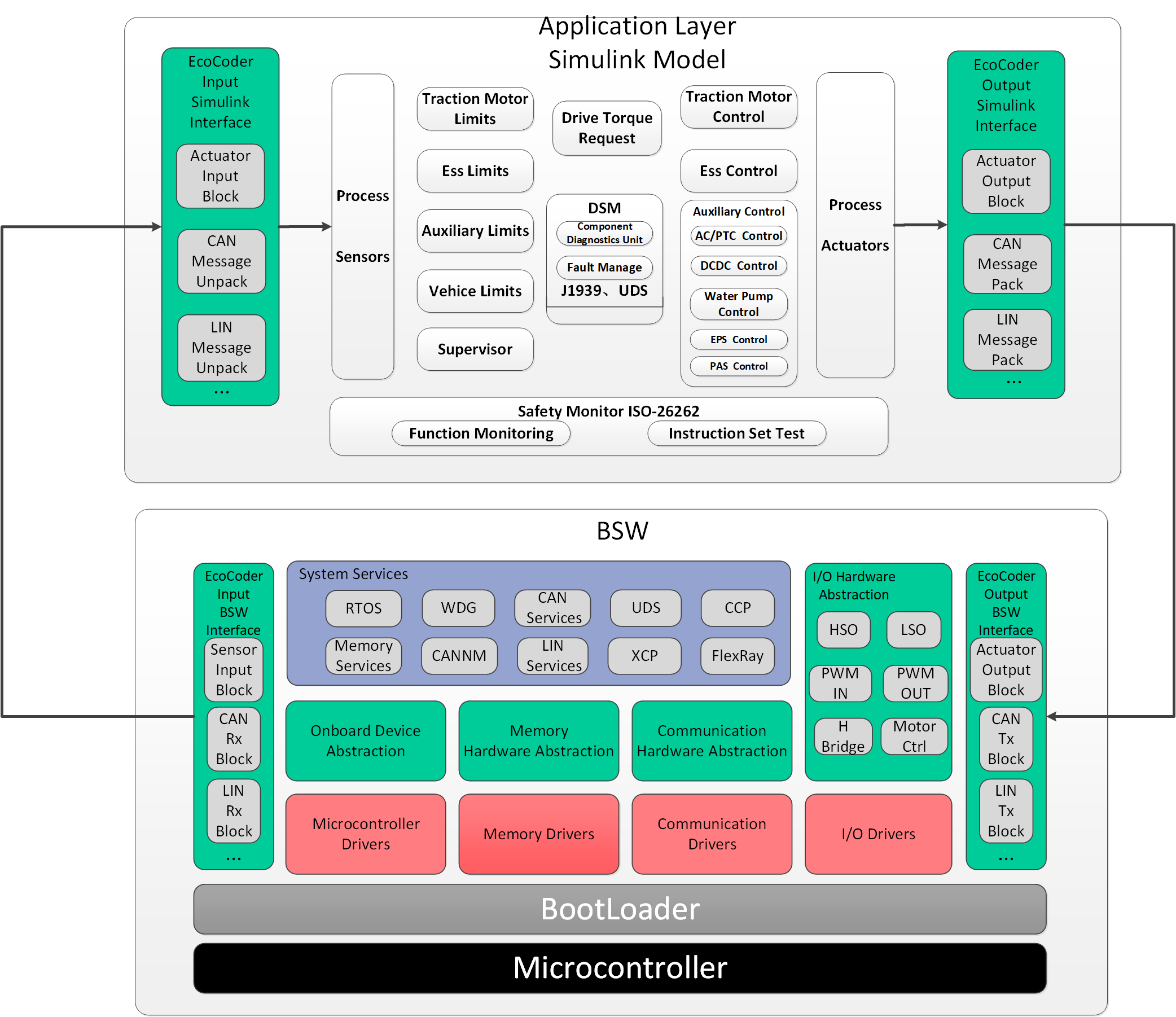

Basic Software Structure
From fluid HMI interactions to modern, human-centered design, Ecotron's Infotainment System controller transforms the cockpit into a welcoming, smart, and high-tech environment. It lays a robust foundation for the mass adoption of intelligent driving solutions—bringing tomorrow’s mobility experience to life, today.
